| MODEL |

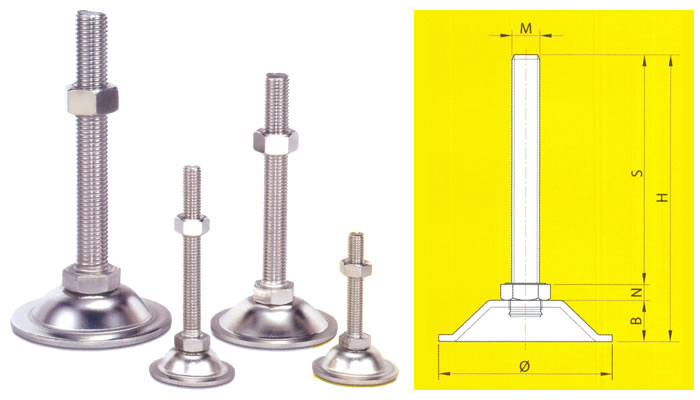

DIMENSIONS(m/m) |
MATERIALS |
표면처리
(FINSH) |
허용하중
(4EA/kg) |
| ￠ |
M |
S |
H |
N |
B |
BOLT&NUT |
하부 |
BL
NBL
(STEEL)
SBL
PSBL
(SUS) |
36 |
M6*1.0 |
40 |
55 |
6 |
9 |
SM10C
SUS304 |
2t(SPHC)
2t(SUS304) |
BL
아연백색
(Zn)
NBL
니켈도금
(Ni)
SBL
일반
(Natural)
PSBL
포리싱(PL) |
100 |
| M8*1.25 |
40 |
55 |
200 |
| 80 |
95 |
| 50 |
M10*1.5 |
60 |
82 |
7 |
15 |
2.6t
(SPHC)
2.5t
(SUS304)
|
300 |
| 100 |
122 |
| M12*1.75 |
50 |
73 |
8 |
500 |
| 75 |
95 |
| 100 |
123 |
| 125 |
148 |
| 150 |
173 |
| 63 |
M12*1.75 |
50 |
73 |
8 |
15 |
3t
(SPHC)
3t
(SUS304) |
600 |
| 75 |
98 |
| 100 |
123 |
| 125 |
148 |
| 150 |
173 |
| 200 |
223 |
| M16*2.0 |
50 |
75 |
10 |
700 |
| 75 |
100 |
| 100 |
125 |
| 130 |
155 |
| 150 |
175 |
| 180 |
205 |
| 200 |
225 |
| 76 |
M16*2.0 |
50 |
77 |
10 |
17 |
800 |
| 75 |
102 |
| 100 |
127 |
| 130 |
157 |
| 150 |
177 |
| 180 |
207 |
| 200 |
277 |
| 300 |
327 |
| M20*2.5 |
80 |
110 |
13 |
1000 |
| 100 |
130 |
| 130 |
160 |
| 150 |
180 |
| 180 |
210 |
| 200 |
230 |
| 250 |
280 |
| 300 |
330 |
| 95 |
M20*2.5 |
80 |
115 |
13 |
22 |
4.5t
(SPHC)
4.0t
(SUS304) |
1500 |
| 100 |
135 |
| 130 |
165 |
| 150 |
185 |
| 180 |
215 |
| 200 |
235 |
| 250 |
285 |
| 300 |
335 |
95
105 |
m24*3.0 |
100 |
138
141 |
16 |
22
25 |
4.5t/6t
(SPHC)
4t/6t
(SUS304) |
2200
2500 |
| 150 |
188
191 |
| 200 |
238
241 |
| 250 |
288
291 |
