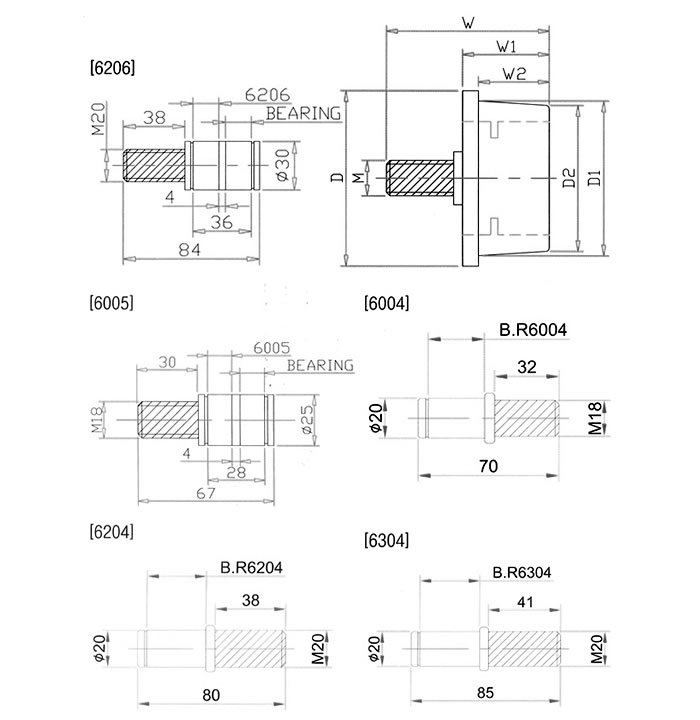

■ 규격표(테이퍼형)
| 품번 |
상품명 |
바퀴외경
(D) |
바퀴폭
(W1-W2) |
볼트
(M) |
바퀴외경
(D1-D2) |
로라턱
(D1) |
삽입베어링
(Z) |
허용하중
(kg) |
| HC-32058 |
HC-N3TRI |
75 |
39-32 |
18 |
64-56 |
7 |
6005 |
500 |
| HC-32059 |
HC-N4TRI |
98 |
49-40 |
20 |
88-83 |
9 |
6206 |
800 |
| HC-32060 |
HC-N5TRI |
128 |
54-42 |
20 |
114-106 |
12 |
6206 |
800 |
| HC-32061 |
HC-N6TRI |
148 |
60-45 |
20 |
131-121 |
15 |
6206 |
800 |
| HC-32062 |
HC-MCTRI-1 |
80 |
38-30 |
18 |
64-58 |
8 |
6004 |
400 |
| HC-32063 |
HC-MC4TRI-1 |
100 |
43-36 |
20 |
89-81 |
7 |
6204 |
800 |
| HC-32064 |
HC-MC5TRI-1 |
138 |
45-36 |
20 |
113-106 |
8.5 |
6304 |
1000 |
| HC-32065 |
HC-MC6TRI-1 |
148 |
44-35 |
20 |
128-120 |
9 |
6304 |
1000 |
| HC-32066 |
HC-MC8TRI-1 |
200 |
44-35 |
20 |
174-170 |
9 |
6304 |
1200 |
| H*B |
t1 |
t2 |
r1 |
r2 |
| 100*75 |
5 |
8 |
7 |
3.5 |
| 125*75 |
5.5 |
9.5 |
9 |
4.5 |
| 150*75 |
5.5 |
9.5 |
9 |
4.5 |
| 200*100 |
7 |
10 |
10 |
5 |
| H*B |
t1 |
t2 |
r1 |
r2 |
| 75*40 |
5 |
7 |
8 |
4 |
| 100*50 |
5 |
7.5 |
8 |
4 |
| 125*65 |
6 |
8 |
8 |
4 |
| 150*75 |
6.5 |
10 |
10 |
5 |
| 200*80 |
7.5 |
11 |
12 |
6 |
| 200*90 |
8 |
13.5 |
14 |
7 |
| 250*90 |
9 |
13 |
14 |
7 |
| 300*90 |
9 |
13 |
14 |
7 |
| 380*100 |
10.5 |
16 |
18 |
9 |
| 380*100 |
13 |
20 |
24 |
12 |
|
|
