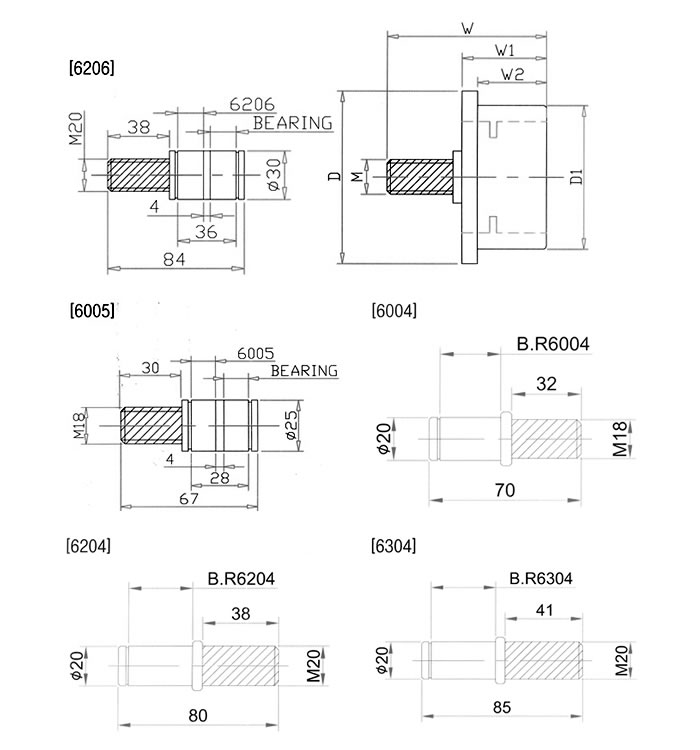

■ 규격표(H빔용 -자형)
| 품번 |
상품명 |
바퀴외경
(D) |
바퀴폭
(W1-W2) |
로라턱 |
바퀴외경
(D1) |
볼트길이 |
볼트
(M) |
삽입베어링
(Z) |
허용하중
(kg) |
| HC-32023 |
HC-3RHR |
75 |
39-32 |
7 |
60 |
30 |
18 |
6005 |
500 |
| HC-32024 |
HC-4RHR |
98 |
49-40 |
9 |
83 |
38 |
20 |
6206 |
800 |
| HC-32025 |
HC-5RHR |
128 |
54-42 |
12 |
107 |
38 |
20 |
6206 |
800 |
| HC-32026 |
HC-6RHR |
148 |
60-45 |
15 |
128 |
38 |
20 |
6206 |
800 |
| HC-32027 |
HC-3RHR-1 |
80 |
38-30 |
8 |
59 |
32 |
18 |
6004 |
400 |
| HC-32028 |
HC-4RHR-1 |
100 |
43-36 |
7 |
81.5 |
38 |
20 |
6204 |
800 |
| HC-32029 |
HC-5RHR-1 |
138 |
45-36 |
8.5 |
107 |
41 |
20 |
6304 |
1000 |
| HC-32030 |
HC-6RHR-1 |
148 |
44-35 |
9 |
127 |
41 |
20 |
6304 |
1000 |
| HC-32031 |
HC-8RHR-1 |
2000 |
44-35 |
9 |
170 |
41 |
20 |
6304 |
1500 |
| H*B |
t1 |
t2 |
|
H*B |
t1 |
t2 |
| 100*75 |
3.2 |
4.5 |
|
200*100 |
3.2 |
4.5 |
| 100*100 |
3.2 |
4.5 |
|
200*100 |
3.2 |
6.0 |
| 100*100 |
6.0 |
9.0 |
|
200*150 |
3.2 |
6.0 |
| 125*75 |
3.2 |
4.5 |
|
|
|
|
| 125*100 |
3.2 |
4.5 |
|
|
|
|
| 125*125 |
6.0 |
9.0 |
|
|
|
|
| 150*75 |
3.2 |
4.5 |
|
|
|
|
| 150*75 |
5.0 |
7.0 |
|
|
|
|
| 150*100 |
3.2 |
4.5 |
|
|
|
|
|
|
